Downloaded Reports - Missing Data?

General
1

Wondering why (in this example of downloaded Report) “IBF tagsten” is set to “Nej” in “Med i BR18”, and why there´s no “GWP-total”

It´s clearly part of the calculation, according to the RTLCA Dashboard (And should be)

Is the downloaded Report faulty ?

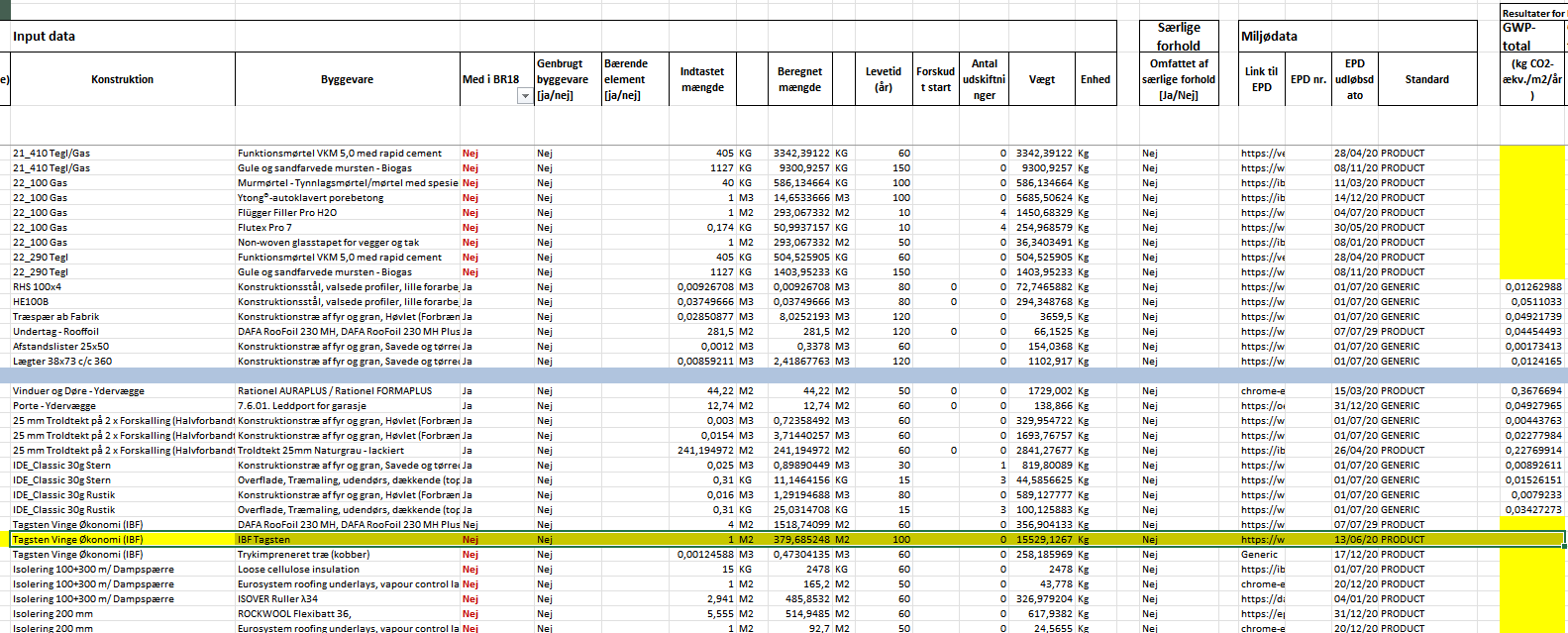

lca-report
lca-report1583×639 41.2 KB

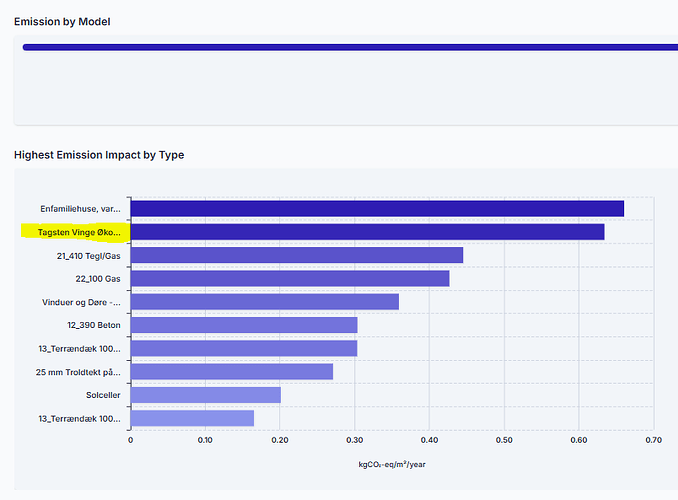

lca-dashboard
lca-dashboard805×593 27.6 KB

2

Hej Klaus

Thank you for your question.

In the Standardformat-report, which is the one you download for LCA-documentation, there is a certain structure. In order to get that structure we need the 3-digit classification code.

There might also be some examples where the 3-digit code is not a part of Tabel 6, which is the deciding table for building parts included in the building LCA.

Best regards
Mads

3

Thanks Mads.

But what a pain in the a** - Turns out that I´ve used a lot of invalid BIMTypeCodes (ie: 377)

Do you happen to have a spreadsheet containing Table 6 with mapped BIMTypeCodes ?

4

Am I the only one who finds this a PITA, or am I just the only one looking at the results in the downloaded reports ? OR, am I completely missing something ?

I´ve managed to map most of the building parts by trial and error. But for instance, what BIM type code would you apply to the EPD “Enfamiliehuse, vand [Standardværdier]” ?

Would be awesome if you could provide a copy of Table 6, with an extra column containing BIM Type Codes !

I´ve tried to create one myself, by using XLOOKUP in the BIMTypeCode - Værdiliste - 2022DK.xlsx - But the naming does not match in those two tables, so to no prevail. Also, it would have to match your system setup, so it probably wouldn´t do the trick anyway.

2 Likes
BR18 2025 New Report Format - Issue
5

@Mads_Ditlevsen, same issue here: Which numbers to use for the electrical and mechanical installations? I used “5” to cover them all, then “52”, “53” and “57”, still no succes. Now I tested also 539 and 531 for water, and it’s not them. It takes a little while to test each, so instead I’m advocating for a more general solution.

I guess it should be fairly simple to teach the AI-mapper to classify materials with “Standardværdier” correctly, but until then it would be nice to just know the right BIM7AA-codes :slight_smile:

6

Hi @SOP

We are aware of this and want to make it more intuitive for the users.
Fairly simple to be honest.

In the meantime:
Afløb: 524 - Vand- og afløb, tilslutninger
Varme: 572 - Anlæg, køle- og varmeflader, vekslere
Vand: 532 - Vandtilslutninger
El: 631 - Forsyninger - ekstern

1 Like
